Station details:
================

Code: TIM
Latitude:  45.73661
Longitude:   21.22081
Elevation:    88.0
Depth:
Name: Timisoara
Region: Romania
Status:

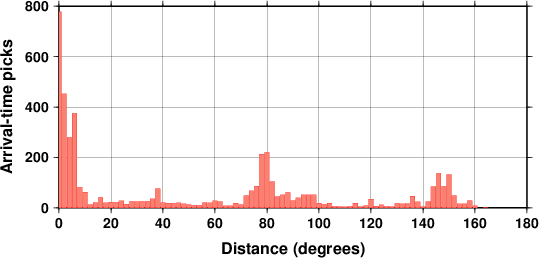

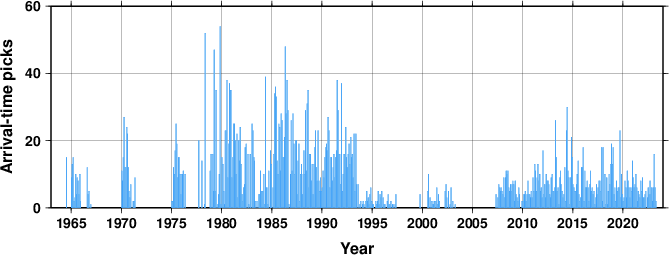

Arrival picks statistics
Travel Time Analysis

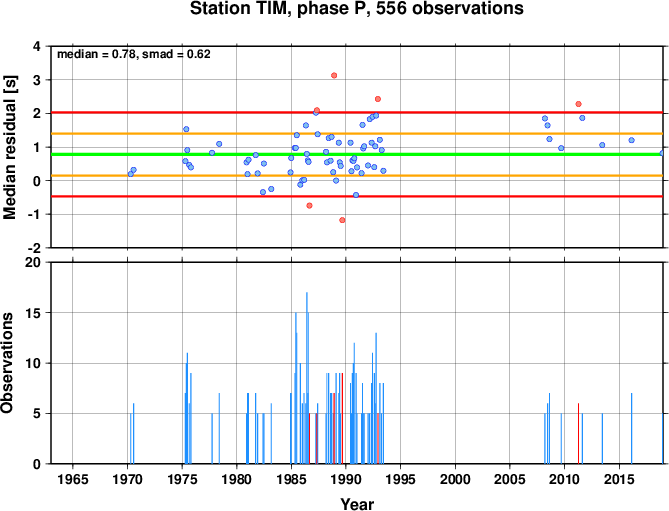

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.
Travel time residuals


Station comments:
=================

Checked against station bulletin
opened 1943
Coords corrected slightly 20010808

Data at the ISC for 66 years between 1950 and 2025.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

TIM    Timisoara                                                     45.73670   21.22170      88.0         25-08-1999 25-08-1999
       Romania
