Station details:
================

Code: TLE
Latitude:  -5.63730
Longitude:  132.73730
Elevation:   113.0
Depth:
Name: Tual
Region: Irian Jaya,Indonesia
Status:

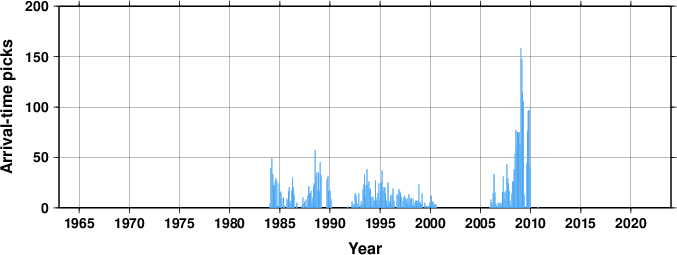

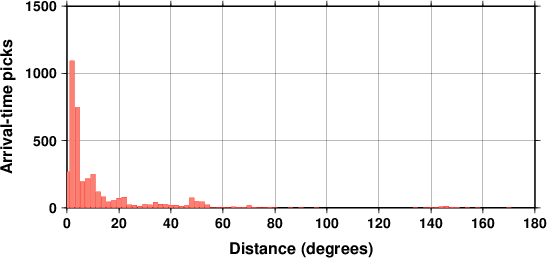

Arrival picks statistics
Travel Time Analysis

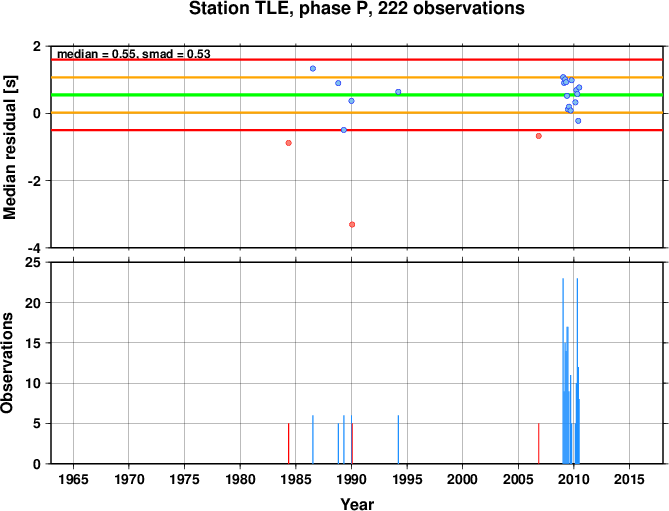

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

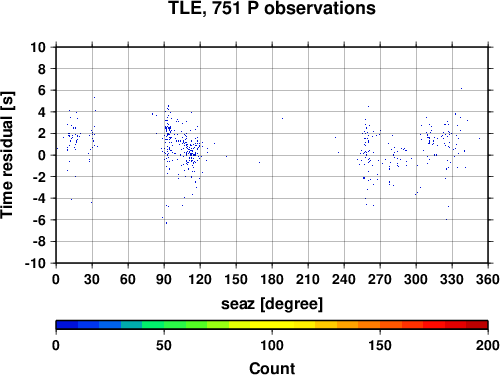

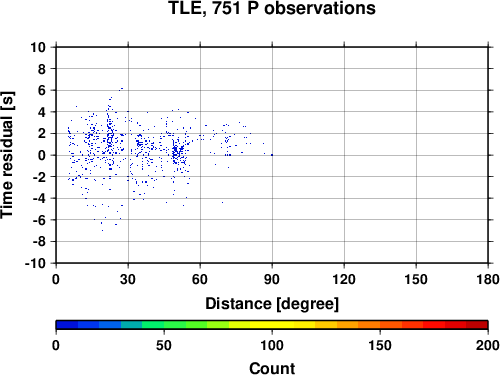

Travel time residuals


Station comments:
=================


Data at the ISC for 24 years between 1983 and 2010.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

TLE    Tual                                                          -5.63750  132.74967     113.0         25-08-1999 07-11-2007
       Irian Jaya,Indonesia
