Station details:
================

Code: TOD
Latitude:  49.60590
Longitude:    8.80380
Elevation:   570.0
Depth:     2.0
Name: Tromm
Region: Hessen,Germany
Status:


Arrival picks statistics
Travel Time Analysis

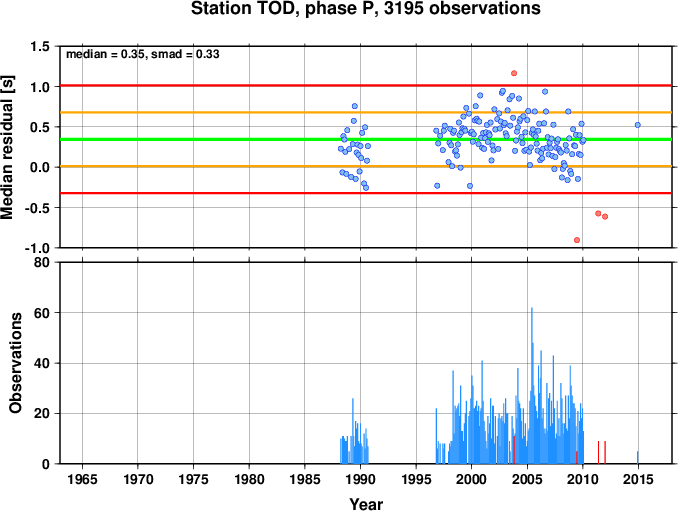

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

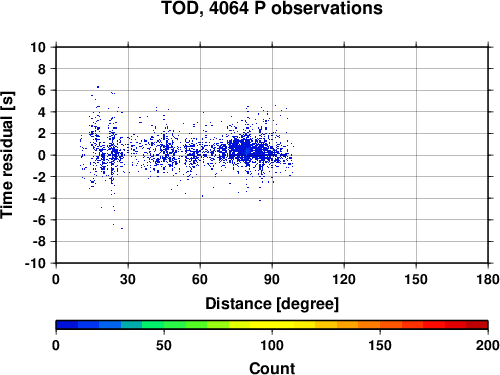

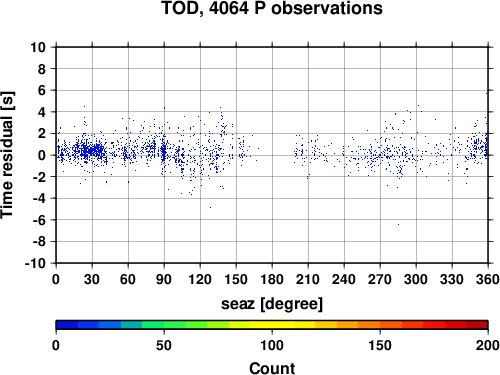

Travel time residuals


Station comments:
=================

KRW opened 1974 - closed 1993
LEDBW opened 1993

Data at the ISC for 30 years between 1987 and 2016.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

TOD    Tromm                                                         49.60567    8.80383     570.0         25-08-1999 16-05-2008
       Hessen,Germany

TOD    Tromm                                                         49.60570    8.80383     440.0         16-05-2008 20-02-2006
       Hessen,Germany
