Station details:
================

Code: TRGS
Latitude:  42.50222
Longitude:    1.96667
Elevation:  1700.0
Depth:
Name: Targassone
Region: Languedoc-Rousillon,France
Status:

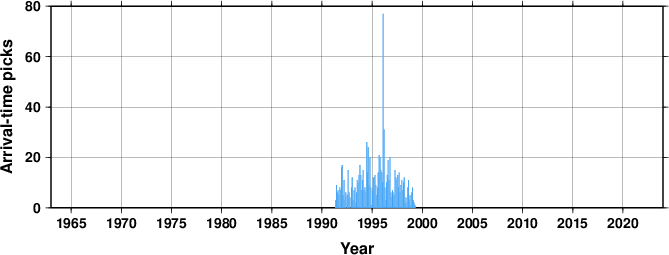

Arrival picks statistics
Travel Time Analysis

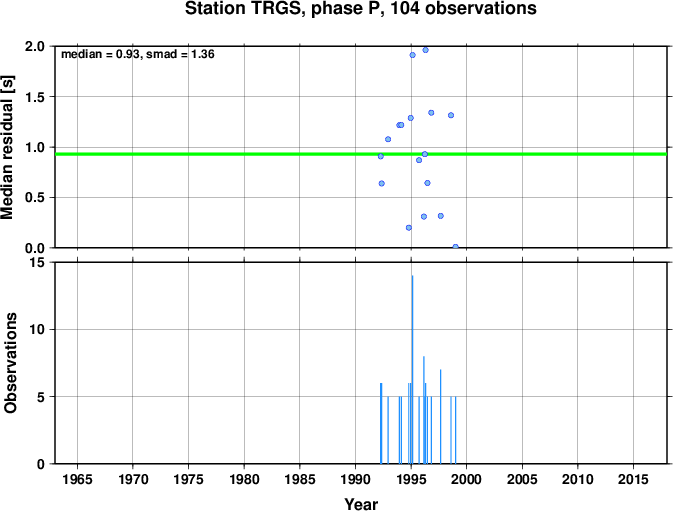

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

closed 19990330
ReNaSS station

Data at the ISC for 9 years between 1991 and 1999.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

TRGS   Targassone                                                    42.50580    1.97478    1700.0         21-01-2003
       Languedoc-Rousillon
