Station details:
================

Code: TRY

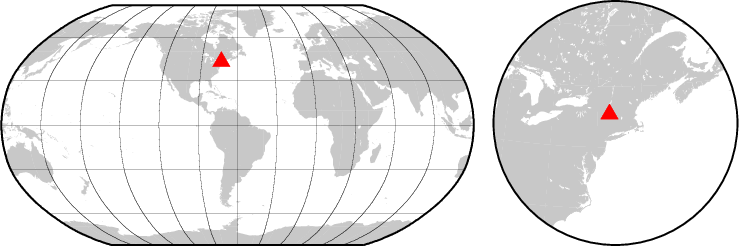

Latitude:  42.73111
Longitude:  -73.66694
Elevation:   131.0
Depth:
Name: Troy
Region: New York,U.S.A.
Status:

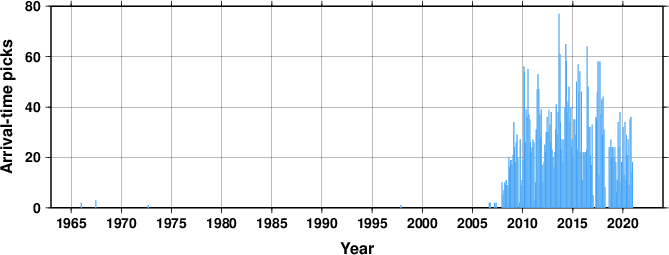

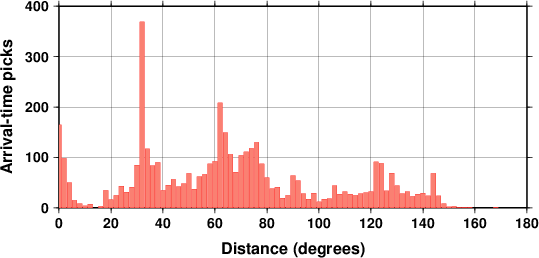

Arrival picks statistics
Travel Time Analysis

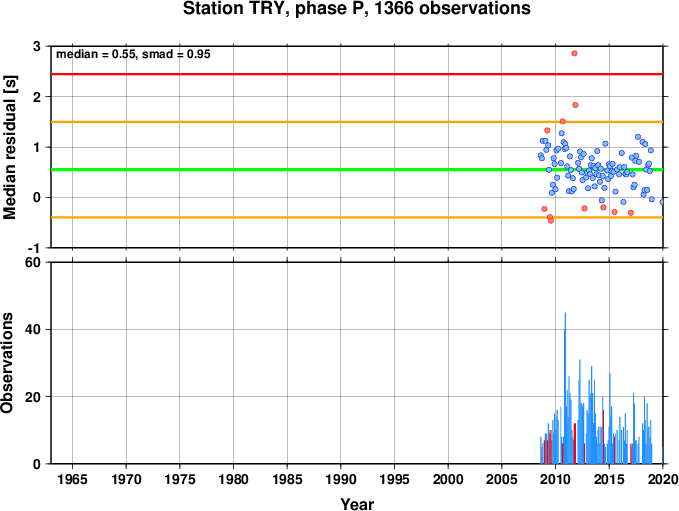

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

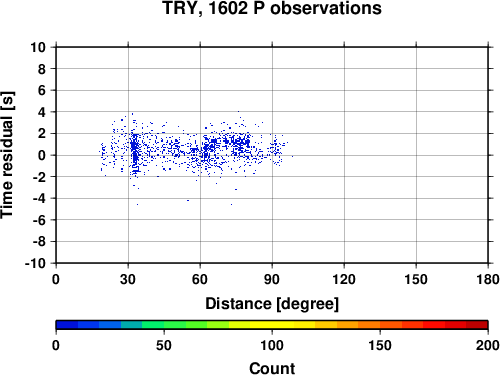

Travel time residuals


Station comments:
=================

opened 1960
WES opened 19951007

Data at the ISC for 19 years between 1966 and 2020.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

TRY    Troy                                                          42.73110  -73.66690     118.0         25-08-1999 25-08-1999
       New York
