Station details:
================

Code: TWOA
Latitude: -35.03250
Longitude:  138.57806
Elevation:   165.0
Depth:
Name: Tennyson Woods
Region: South Australia,Australia
Status:

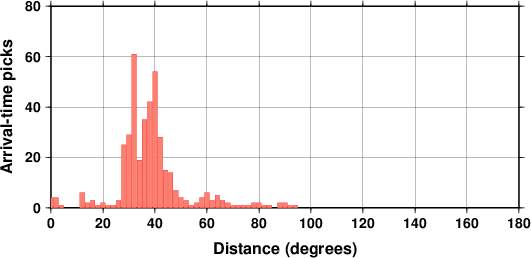

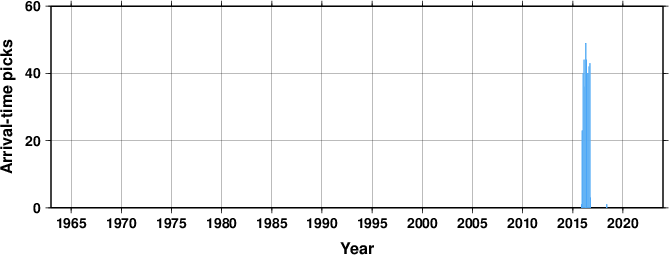

Arrival picks statistics

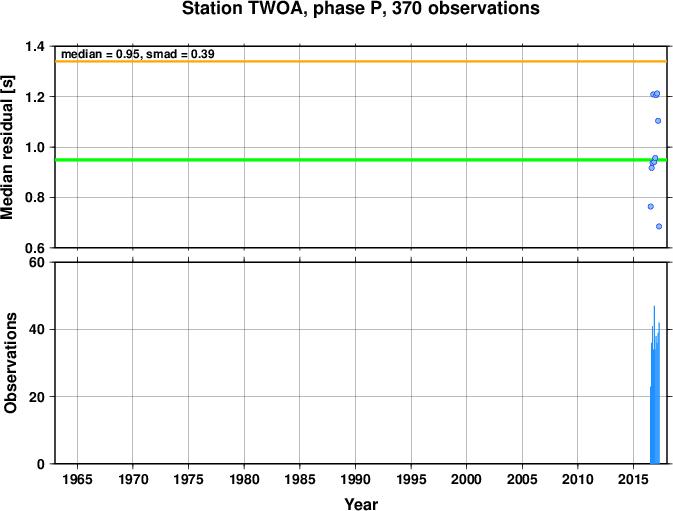

Travel Time Analysis
On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

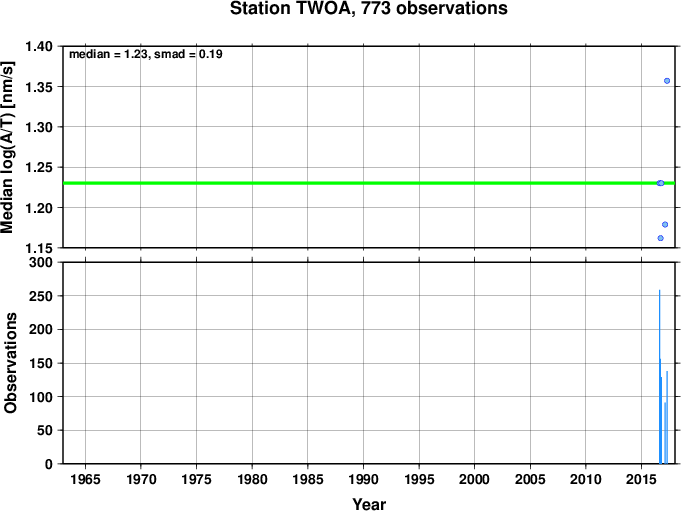

Amplitude analysis
 On the top graph every dot represents the median value for that month of data.
The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line (if present) shows twice the standard deviation (2 * smad).
The bottom graph shows the number of observations for each month. Any red columns show those observations whose monthly median value is greater than twice the standard deviation (2 * smad) from the overall (running) median (shown in the top graph by red dots).

Red dots indicate a possible calibration error.


Station comments:
=================

Tennyson Woods Observatory. IDA network station
Closed from July 1995 until Jan 1999
197804-199505

Data at the ISC for 4 years between 2015 and 2025.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

TWOA   Tennyson Woods                                               -35.03250  138.57800     165.0         25-08-1999 25-08-1999
       South Australia

TWOA   Tennyson Woods                                               -35.03250  138.57806     165.0         25-08-1999 03-09-2010
       South Australia,Australia
