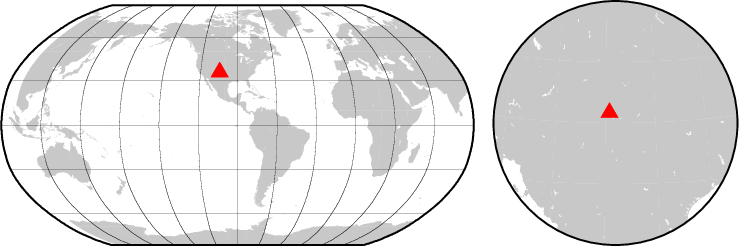

Station details:
================

Code: V25A
Latitude:  35.83830
Longitude: -104.61640
Elevation:  1861.0
Depth:
Name: Rancho No Tengo, Wagon Mound
Region: New Mexico,U.S.A.
Status:


Arrival picks statistics
Travel Time Analysis

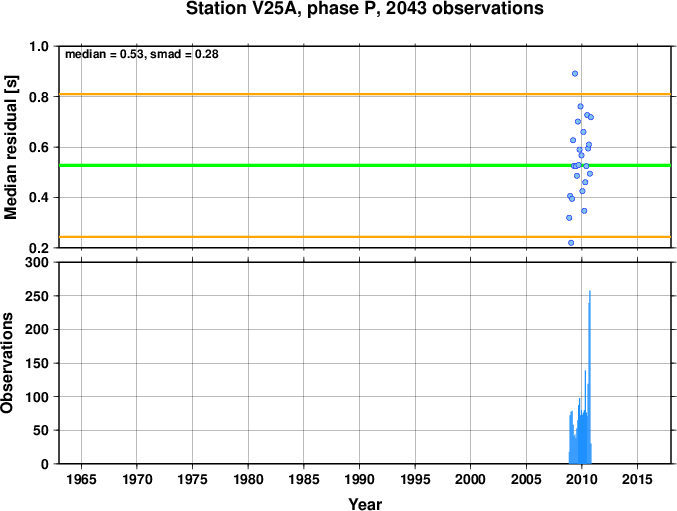

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.
Travel time residuals


Station comments:
=================

Part of the USArray Transportable Array Network

Data at the ISC for 3 years between 2008 and 2010.
