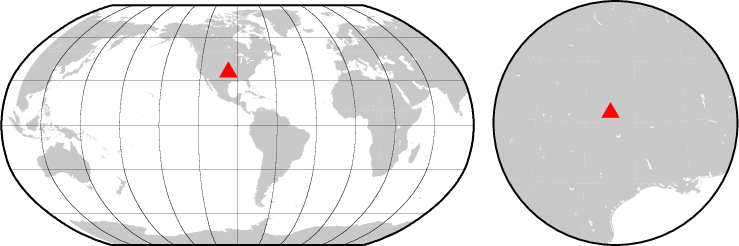

Station details:
================

Code: V34A
Latitude:  35.83450
Longitude:  -97.51760
Elevation:   329.0
Depth:
Name: Guthrie
Region: Oklahoma,U.S.A.
Status:

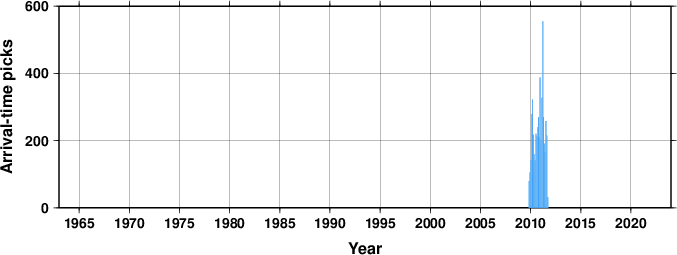

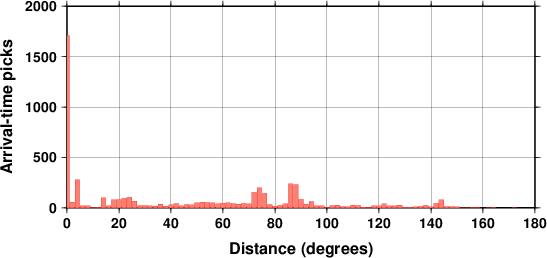

Arrival picks statistics
Travel Time Analysis

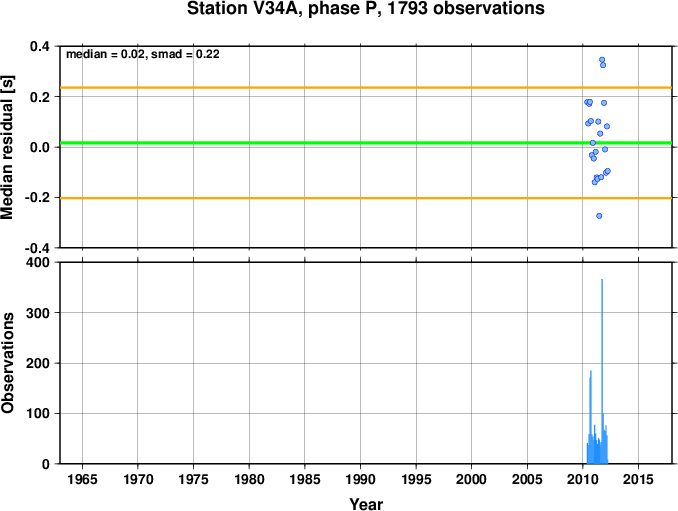

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

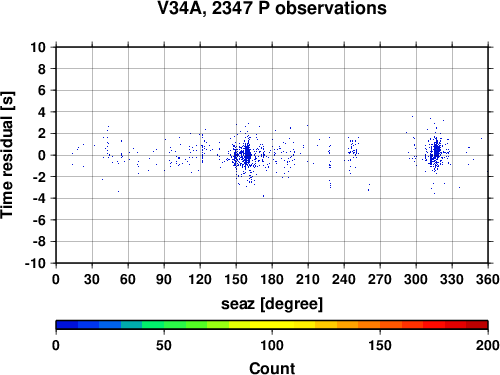

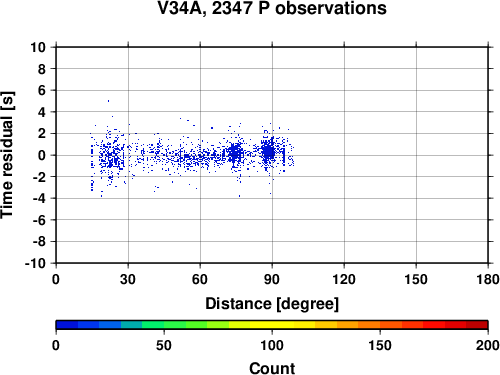

Travel time residuals
Amplitude analysis

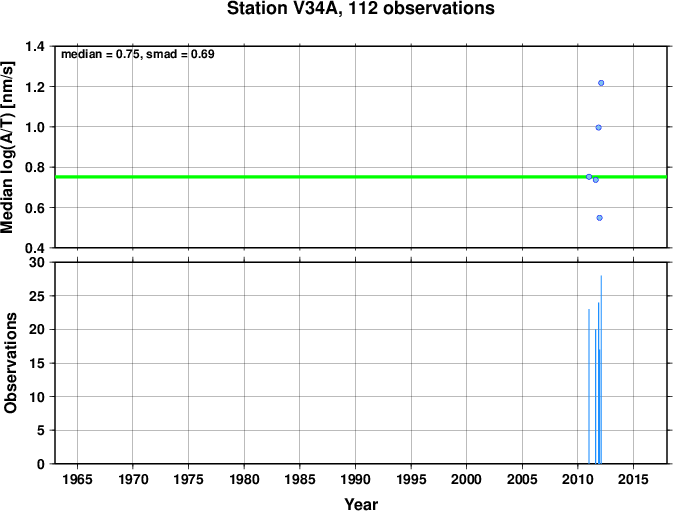

 On the top graph every dot represents the median value for that month of data.
The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line (if present) shows twice the standard deviation (2 * smad).
The bottom graph shows the number of observations for each month. Any red columns show those observations whose monthly median value is greater than twice the standard deviation (2 * smad) from the overall (running) median (shown in the top graph by red dots).

Red dots indicate a possible calibration error.


Station comments:
=================


Data at the ISC for 3 years between 2009 and 2011.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

V34A   Guthrie                                                                                             03-06-2008 11-05-2010
       Oklahoma,U.S.A.
