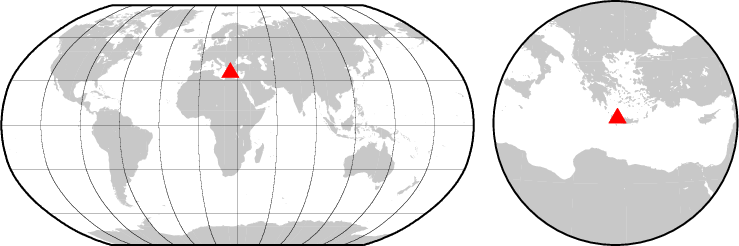

Station details:
================

Code: VAM
Latitude:  35.40690
Longitude:   24.19970
Elevation:   225.0
Depth:
Name: Vamos
Region: Crete,Greece
Status:

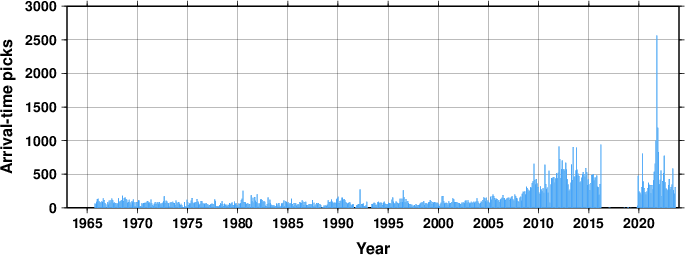

Arrival picks statistics
Travel Time Analysis

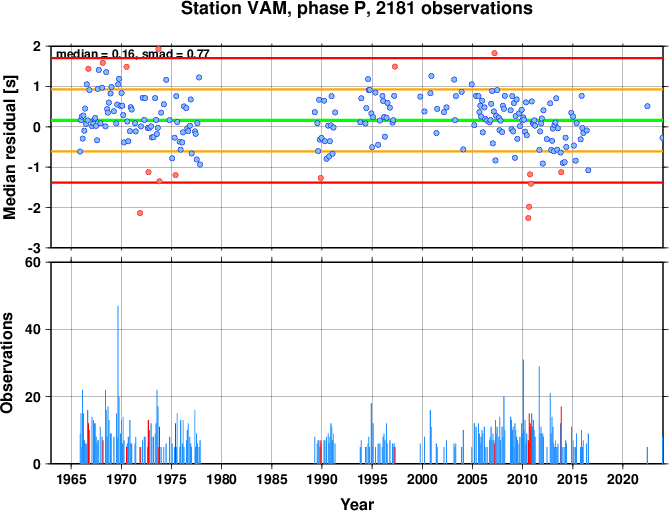

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

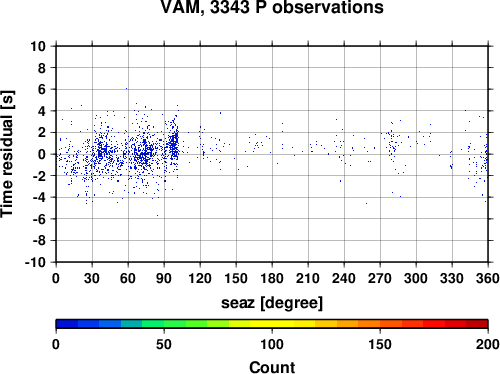

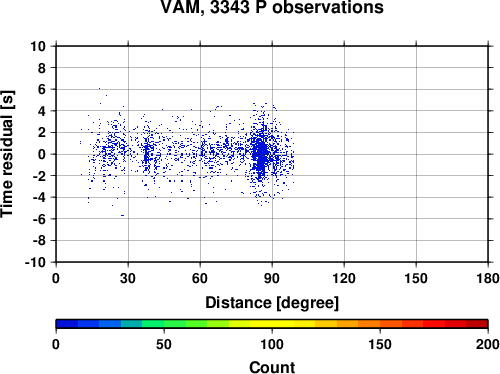

Travel time residuals


Station comments:
=================

Checked against station bulletin
XC2R2-RES-RWM

Data at the ISC for 61 years between 1965 and 2025.
