Station details:
================

Code: VAS01
Latitude: -22.28010
Longitude:  -43.44260
Elevation:   402.0
Depth:     0.0
Name: Vassouras-RJ
Region: Rio de Janeiro,Brazil
Status:

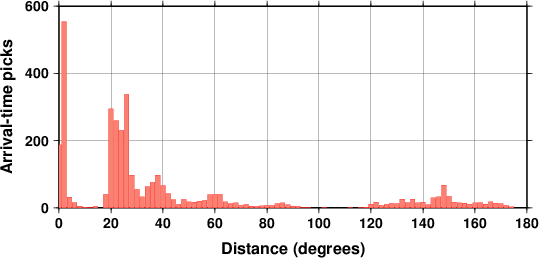

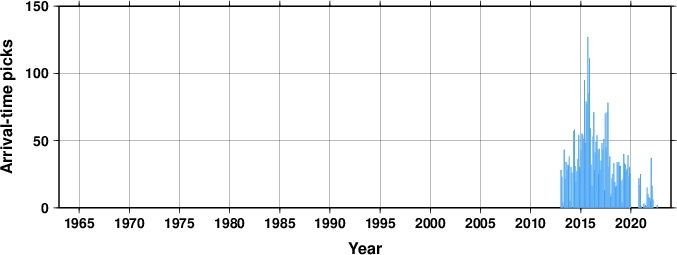

Arrival picks statistics
Travel Time Analysis

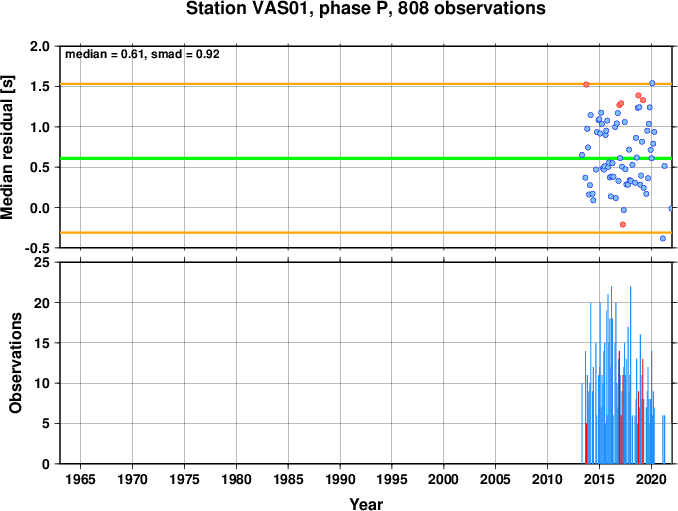

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

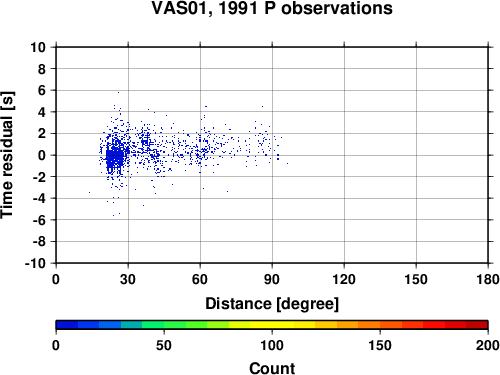

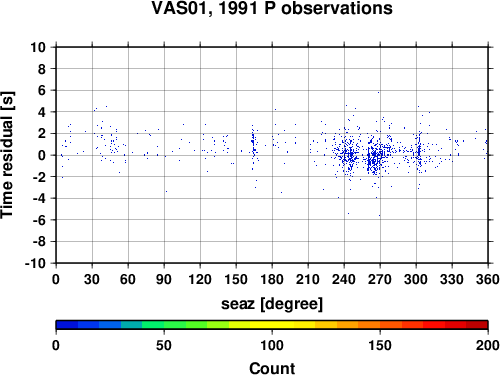

Travel time residuals


Station comments:
=================

The Network Code is registered at the International Federation of
Seismograph Networks as ON.

Data at the ISC for 11 years between 2013 and 2024.
