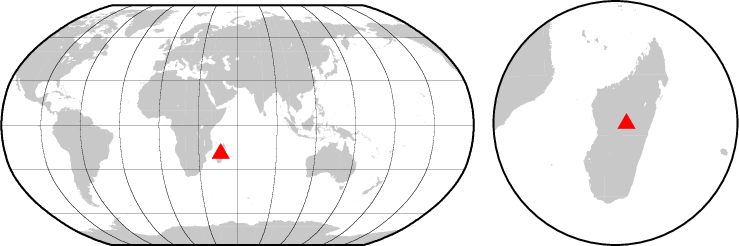

Station details:
================

Code: VDA
Latitude: -19.06100
Longitude:   46.95300
Elevation:  1472.0
Depth:
Name: Vodivohitra
Region: Madagascar
Status:

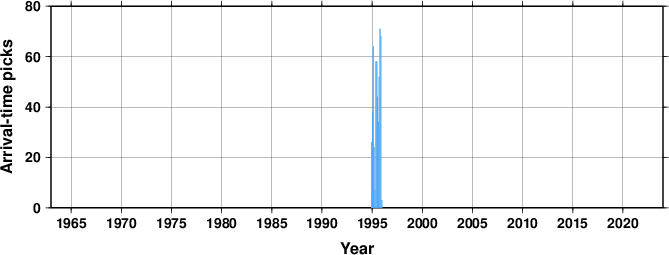

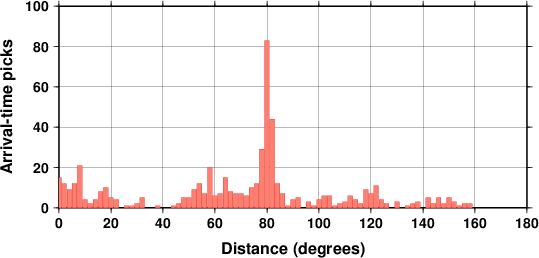

Arrival picks statistics
Travel Time Analysis

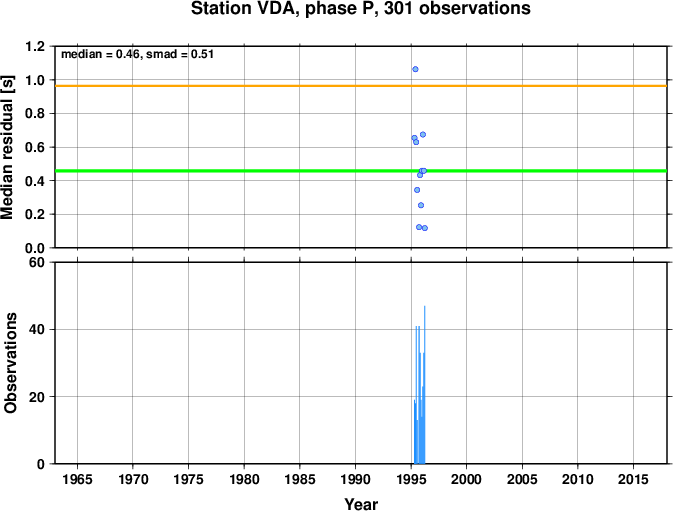

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

opened 19941218

Data at the ISC for 2 years between 1994 and 1995.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

VDA    Vodivohitra                                                  -19.06110   46.95310    1472.0         25-08-1999 25-08-1999
       Madagascar
