Station details:
================

Code: VHO
Latitude:  17.07231
Longitude:  -96.73319
Elevation:  1685.0
Depth:
Name: Vista Hermosa

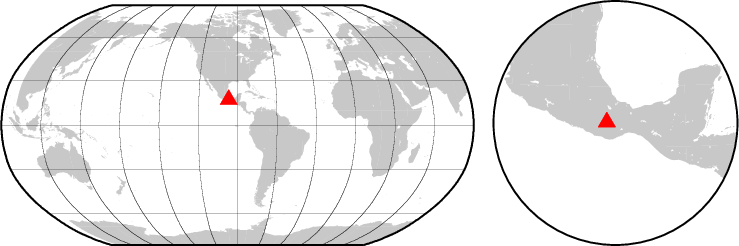

Region: Oaxaca,Mexico
Status:

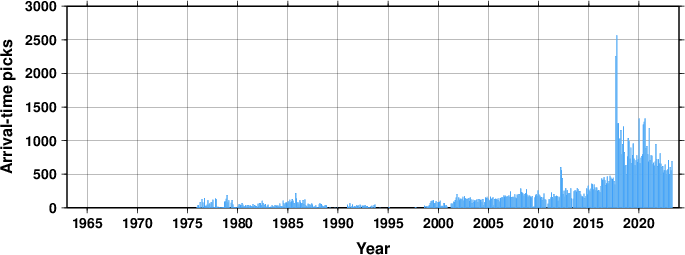

Arrival picks statistics
Travel Time Analysis

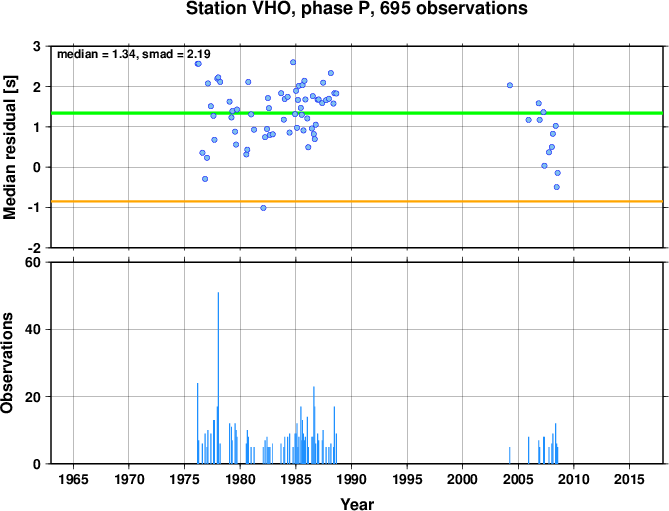

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

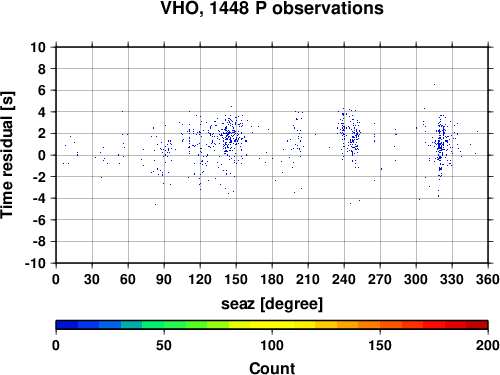

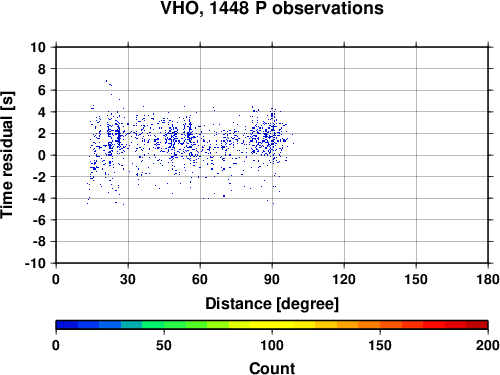

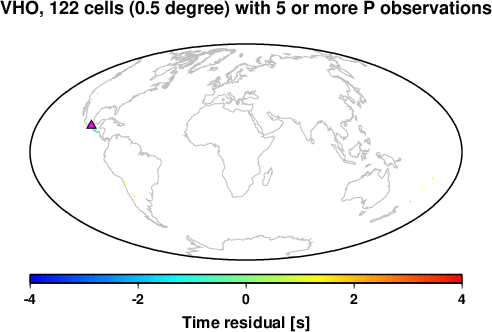

Travel time residuals


Station comments:
=================

Correction to position May 1994, Mar 1999
MNSN opened 1994
MNSN code OXIG

Data at the ISC for 49 years between 1975 and 2024.
