Station details:
================

Code: VIS
Latitude:  17.72100
Longitude:   83.32867
Elevation:    82.0
Depth:
Name: Vishakhapatnam
Region: Andhra Pradesh,India
Status:

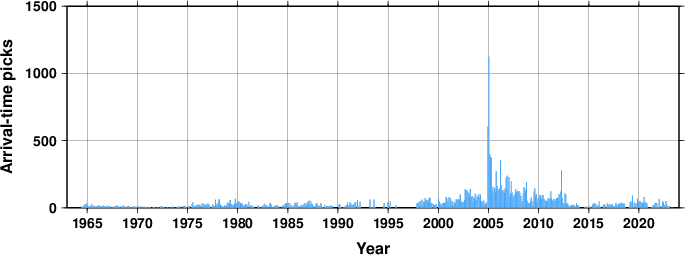

Arrival picks statistics

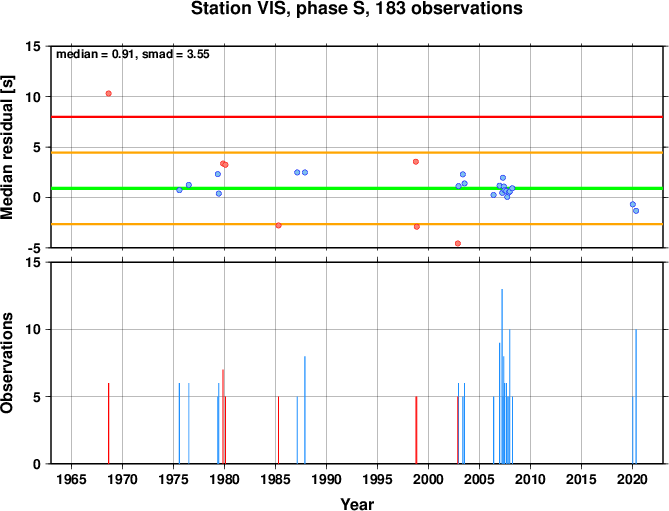

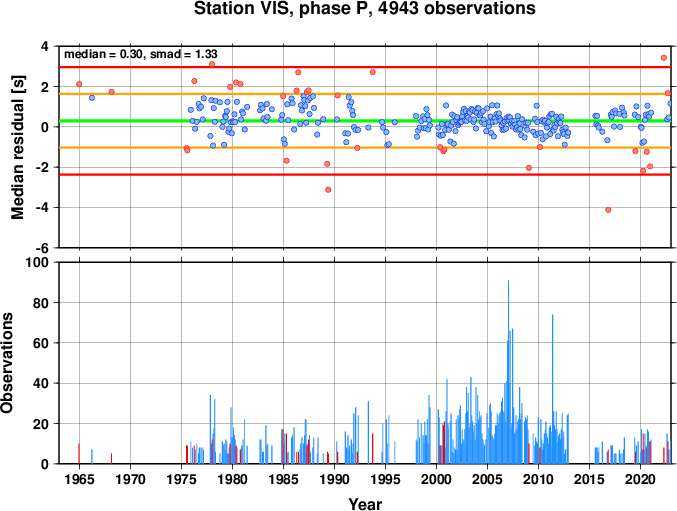

Travel Time Analysis
On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.
Travel time residuals

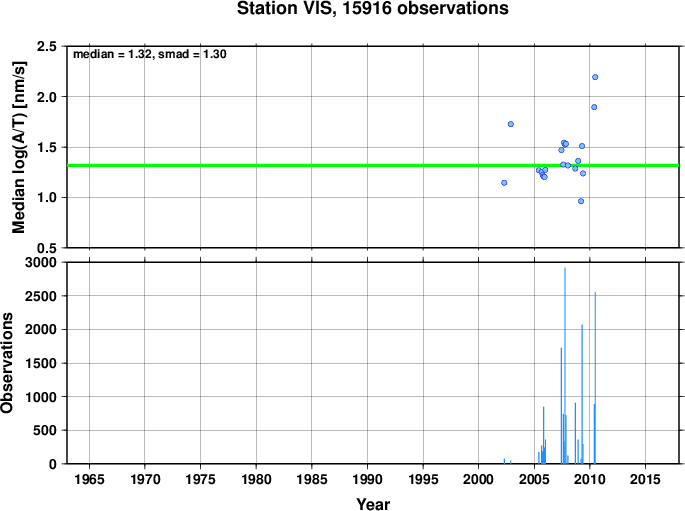

Amplitude analysis
 On the top graph every dot represents the median value for that month of data.
The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line (if present) shows twice the standard deviation (2 * smad).
The bottom graph shows the number of observations for each month. Any red columns show those observations whose monthly median value is greater than twice the standard deviation (2 * smad) from the overall (running) median (shown in the top graph by red dots).

Red dots indicate a possible calibration error.


Station comments:
=================

Checked against station bulletin
Co-ordinates corrected Feb 1998
opened 1962
BB opened 1998?
Coords corrected >3 km 199905

Data at the ISC for 63 years between 1961 and 2024.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

VIS    Vishakhapatnam                                                17.72080   83.32830      82.0         25-08-1999 25-08-1999
       Andhra Pradesh

VIS    Vishakhapatnam                                                17.72100   83.32867      82.0         25-08-1999 03-03-2000
       Andhra Pradesh
