Station details:
================

Code: VOR
Latitude:  51.73111
Longitude:   39.20000
Elevation:   160.8
Depth:
Name: Voronezh
Region: Voronezhskaya Oblast',Russia
Status:

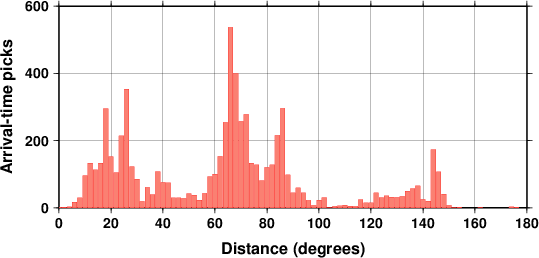

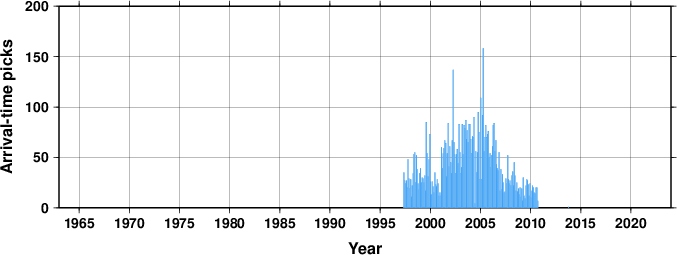

Arrival picks statistics
Travel Time Analysis

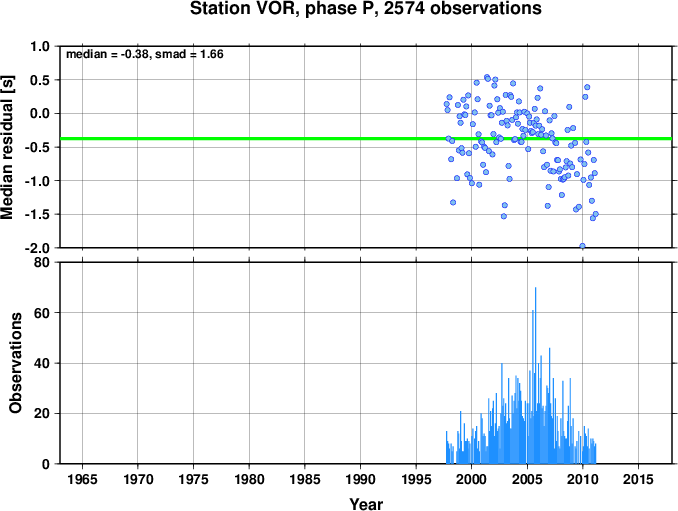

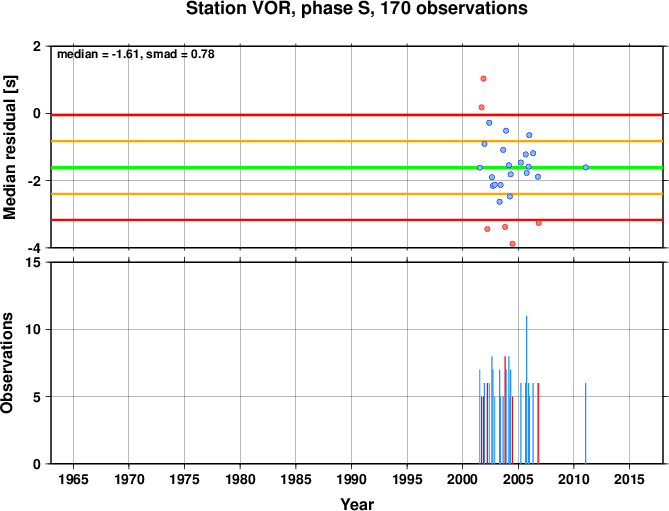

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

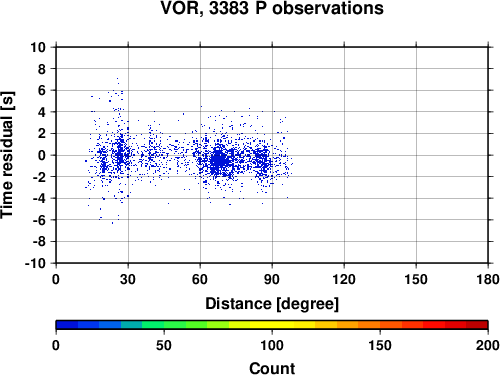

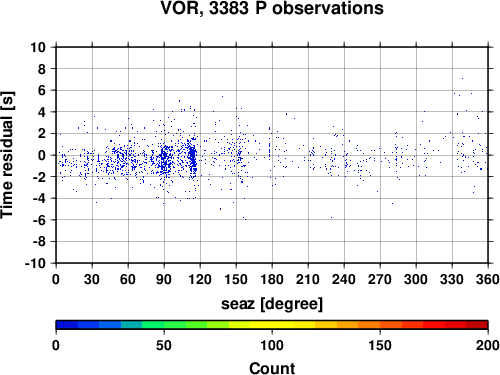

Travel time residuals
Amplitude analysis

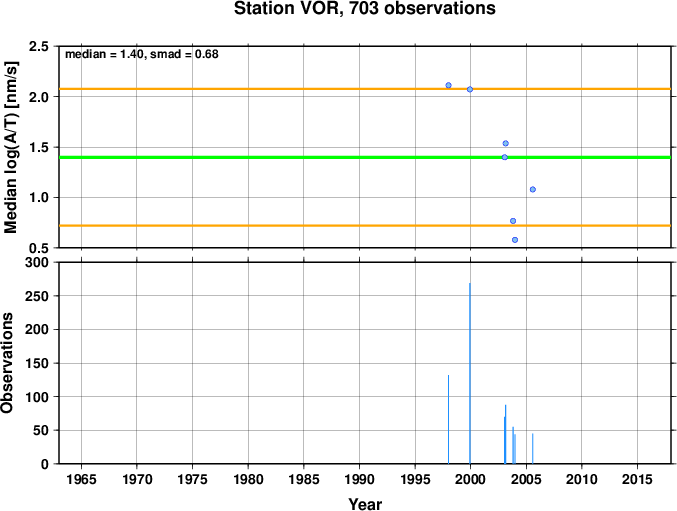

 On the top graph every dot represents the median value for that month of data.
The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line (if present) shows twice the standard deviation (2 * smad).
The bottom graph shows the number of observations for each month. Any red columns show those observations whose monthly median value is greater than twice the standard deviation (2 * smad) from the overall (running) median (shown in the top graph by red dots).

Red dots indicate a possible calibration error.


Station comments:
=================

opened 19970101

Data at the ISC for 15 years between 1997 and 2013.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

VOR    Voronezh                                                      51.73110   39.20000     161.0         25-08-1999 25-08-1999
       Voronezhskaya

VOR    Voronezh                                                      51.73110   39.20000     161.0         25-08-1999 03-03-2000
       Voronezhskaya

VOR    Voronezh                                                      51.73111   39.20000     160.8         03-03-2000 31-03-2011
       Voronezhskaya Oblast',Russia
