Station details:
================

Code: VWCC
Latitude:  37.24589
Longitude:  -79.97761
Elevation:   361.0
Depth:
Name: Virginia Western Community College
Region: Virginia,U.S.A.
Status:

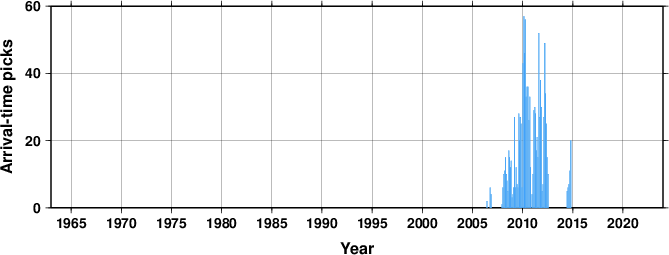

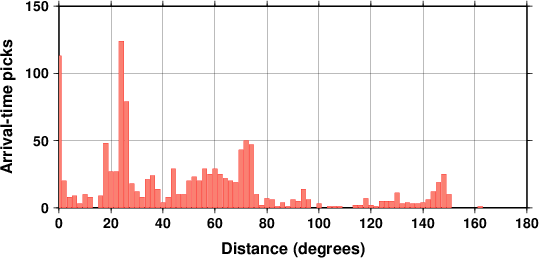

Arrival picks statistics
Travel Time Analysis

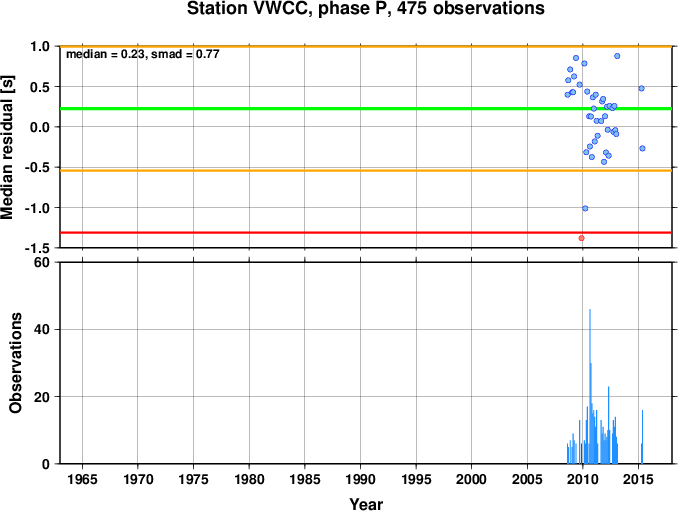

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

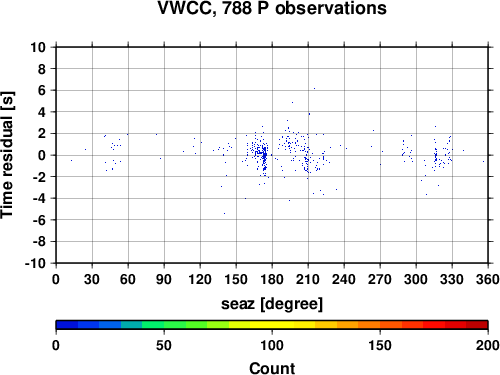

Travel time residuals


Station comments:
=================


Data at the ISC for 8 years between 2006 and 2014.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

VWCC   Virginia Western Community College                            37.24589  -79.97761     361.0         30-09-2004 05-10-2010
       North America
