Station details:
================

Code: WDD
Latitude:  35.83730
Longitude:   14.52420
Elevation:    44.1
Depth:
Name: Wied Dalam
Region: Malta
Status:

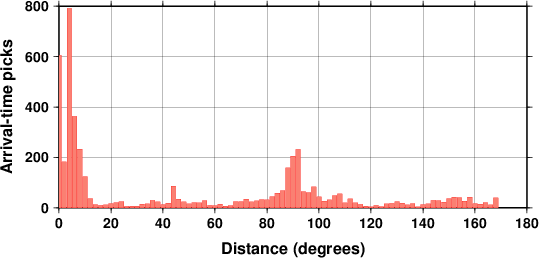

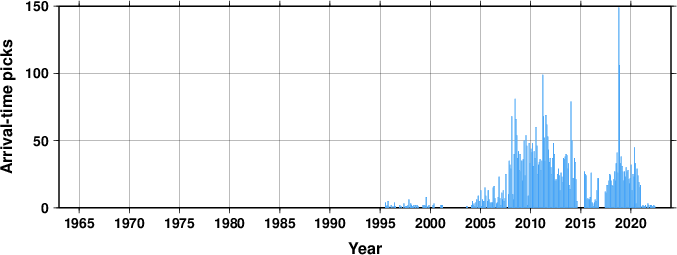

Arrival picks statistics

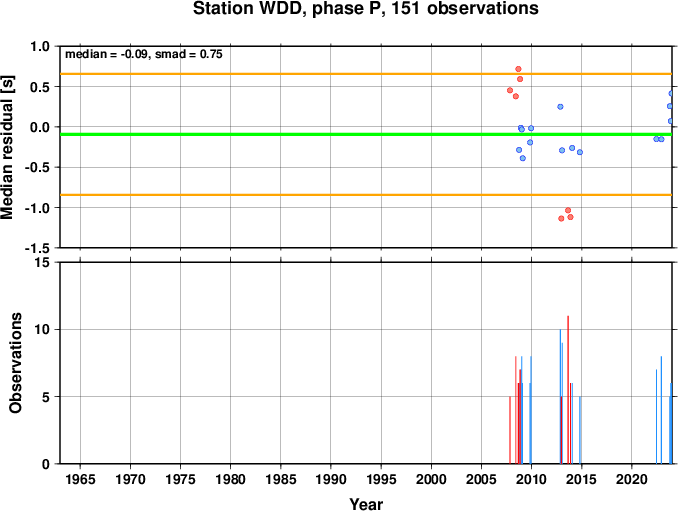

Travel Time Analysis
On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

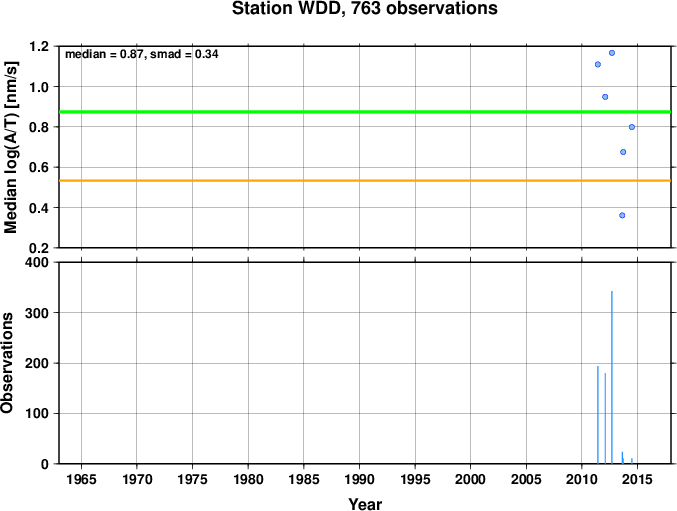

Amplitude analysis
 On the top graph every dot represents the median value for that month of data.
The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line (if present) shows twice the standard deviation (2 * smad).
The bottom graph shows the number of observations for each month. Any red columns show those observations whose monthly median value is greater than twice the standard deviation (2 * smad) from the overall (running) median (shown in the top graph by red dots).

Red dots indicate a possible calibration error.


Station comments:
=================


Data at the ISC for 29 years between 1995 and 2025.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

WDD    Wield Dalam                                                   35.50000   14.31000      41.0         03-03-2000 03-03-2000


WDD    Wield Dalam                                                   35.86700   14.52300      41.0         03-03-2000 11-11-2013
       Malta
