Station details:
================

Code: WUC
Latitude:  30.54360
Longitude:  114.35000
Elevation:    26.0
Depth:
Name: Wuhan
Region: Hubei,China
Status:


WUC is an alternative code for WHN

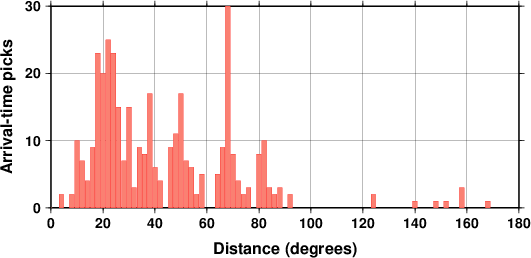

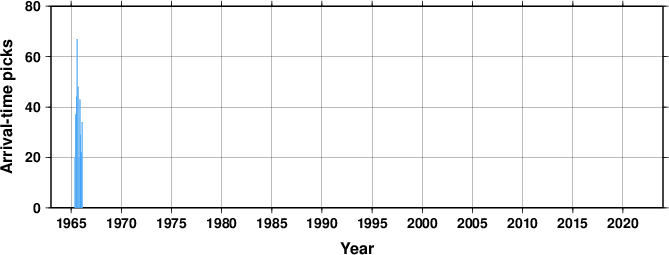

Arrival picks statistics
Travel Time Analysis

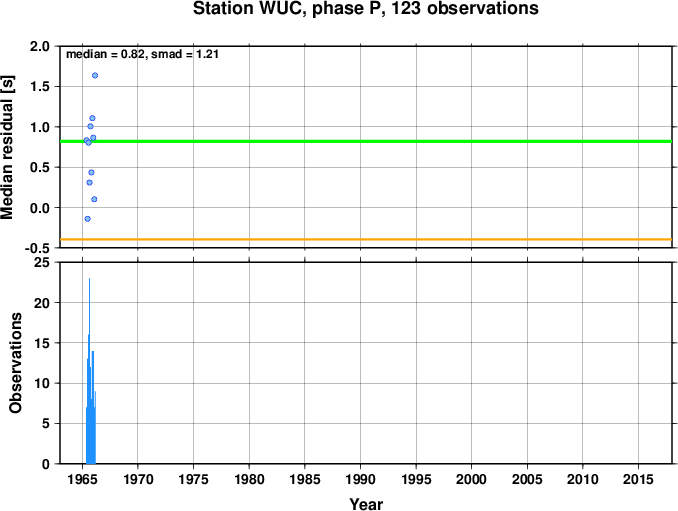

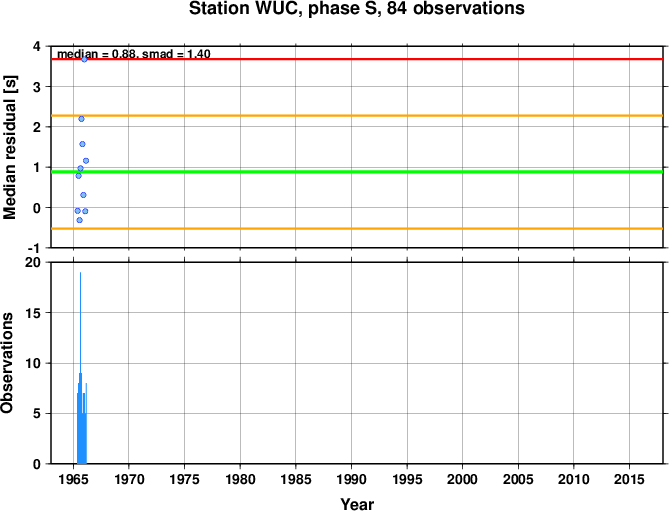

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

Checked against station bulletin

Data at the ISC for 2 years between 1965 and 1966.
