Station details:
================

Code: WVNY
Latitude:  42.40620
Longitude:  -78.60420
Elevation:   490.0
Depth:     0.0
Name: West Valley, New York
Region: New York,U.S.A.
Status:

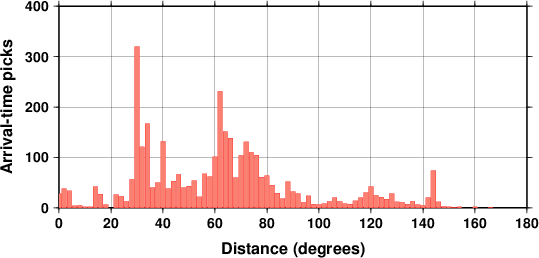

Arrival picks statistics
Travel Time Analysis

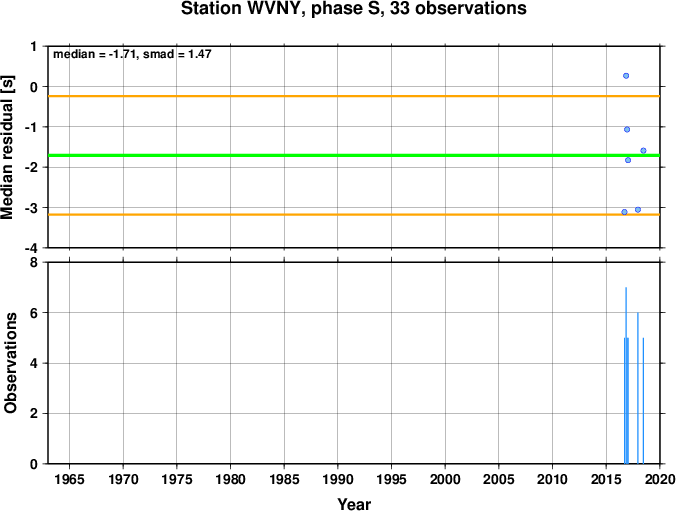

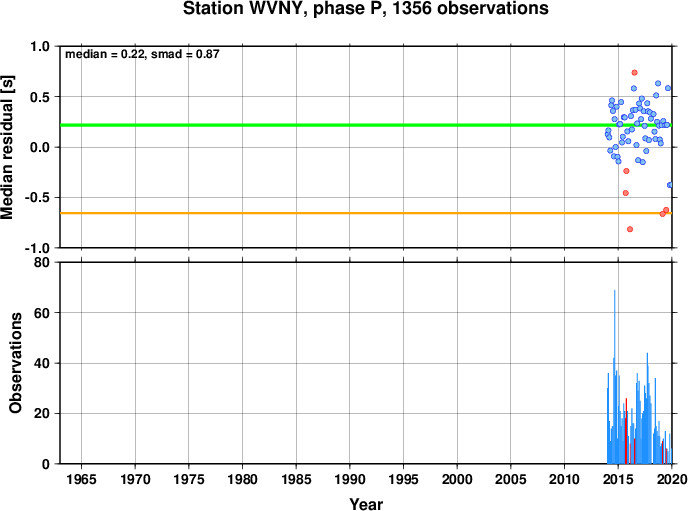

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).

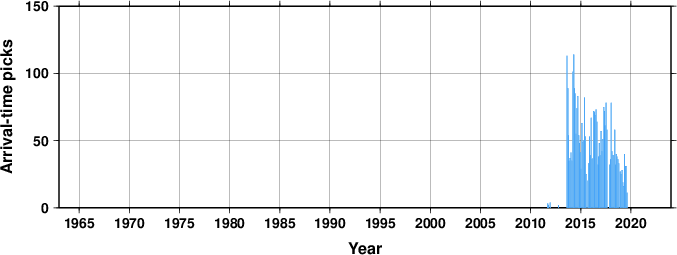

The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

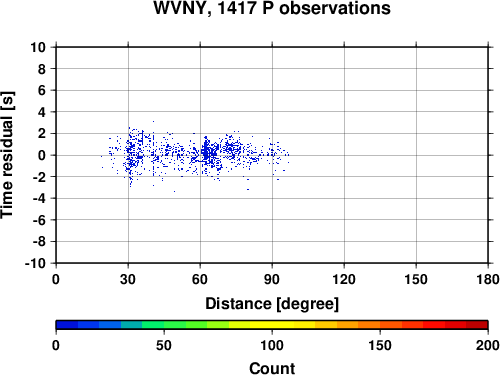

Travel time residuals


Station comments:
=================

Trillium-120PA)
with a natural period of 120s and 24-bit A/D datalogger with GPS clock
sensor is installed in a
concrete vault directly on sandstone bedrock of Late Devonian
(Cattaragus formation of shale and sandstone).

Data at the ISC for 11 years between 2011 and 2024.
