Station details:
================

Code: ZAK
Latitude:  50.38194
Longitude:  103.28056
Elevation:  1200.0
Depth:
Name: Zakamensk
Region: Buryatiya,Russia
Status:

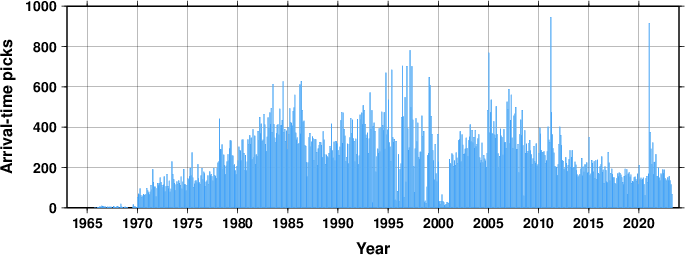

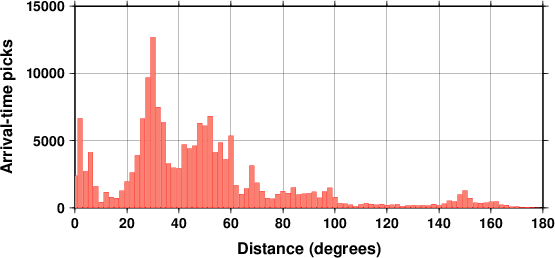

Arrival picks statistics
Travel Time Analysis

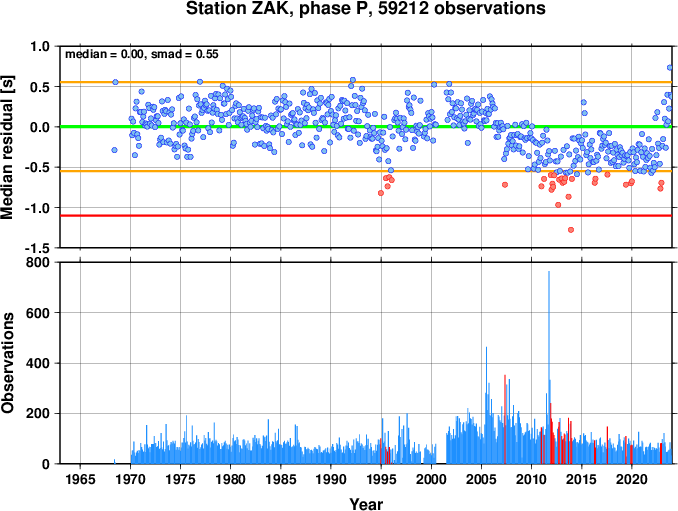

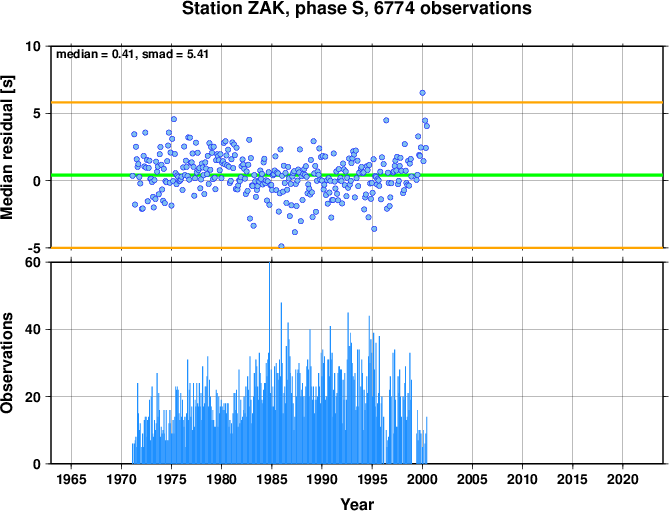

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

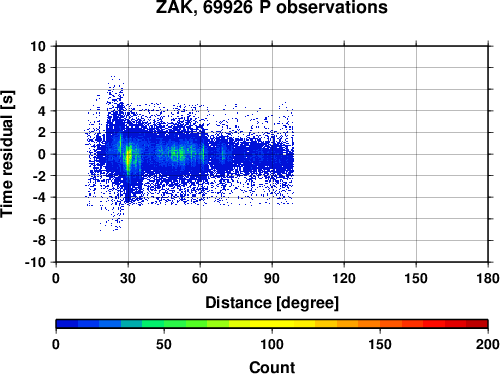

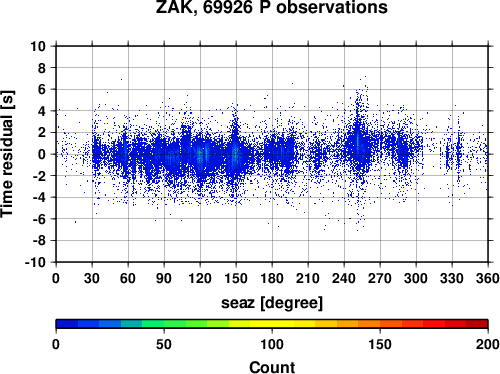

Travel time residuals
Amplitude analysis

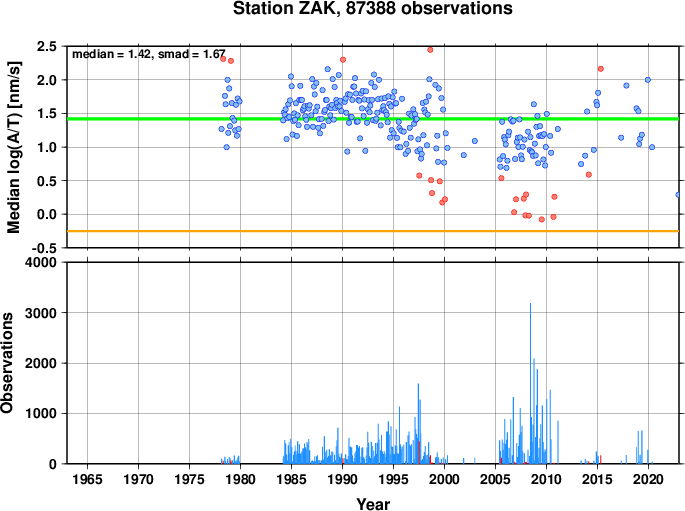

 On the top graph every dot represents the median value for that month of data.
The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line (if present) shows twice the standard deviation (2 * smad).
The bottom graph shows the number of observations for each month. Any red columns show those observations whose monthly median value is greater than twice the standard deviation (2 * smad) from the overall (running) median (shown in the top graph by red dots).

Red dots indicate a possible calibration error.


Station comments:
=================

MC2R4-RAT-RCH-RID-RIM-RKM-RTA-RWM

Data at the ISC for 60 years between 1966 and 2025.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

ZAK    Zakamensk                                                     50.38330  103.28300                   25-08-1999 25-08-1999
       Buryatskaya

ZAK    Zakamensk                                                     50.38333  103.28333    1200.0         25-08-1999 03-03-2000
       Buryatskaya
