Station details:
================

Code: ZKTA
Latitude:  41.63800
Longitude:   46.62200
Elevation:   497.0
Depth:
Name: Zakatala
Region: Azerbaijan
Status:

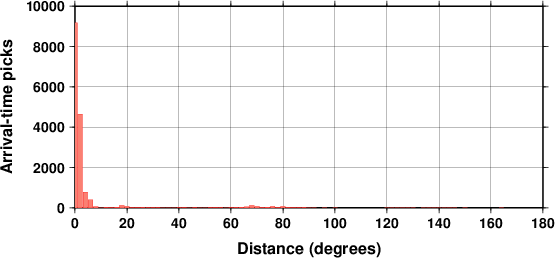

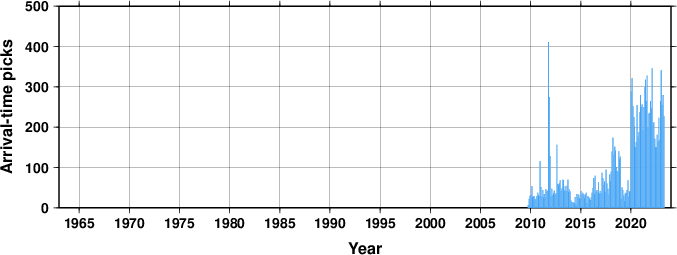

Arrival picks statistics
Travel Time Analysis

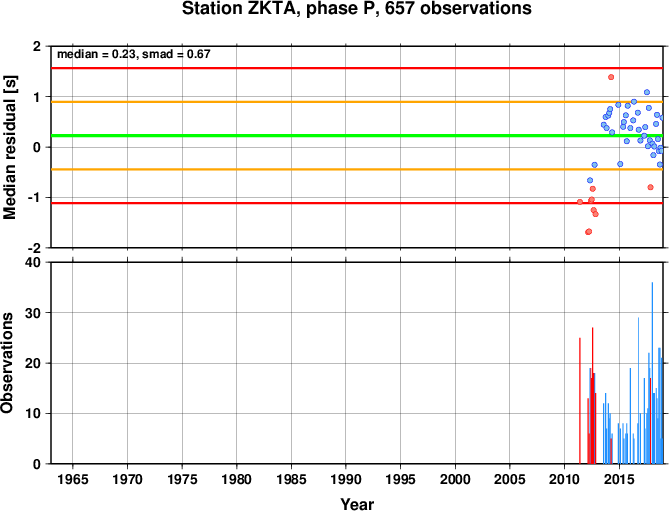

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

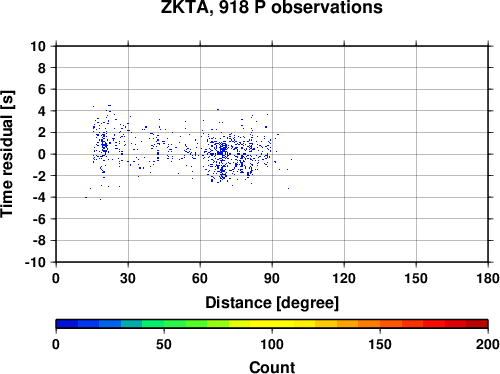

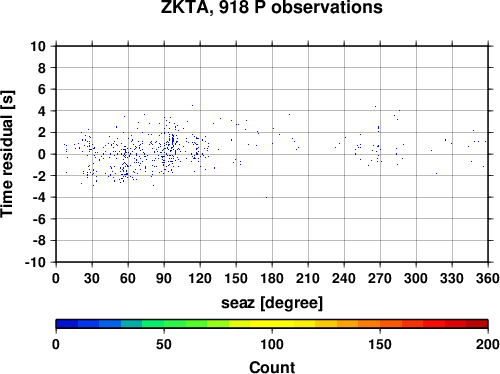

Travel time residuals


Station comments:
=================

AZER Azerbaijan National Academy of Sciences Republican Seismic
Survey Center Gurban Yetirmishli General Director RSSC of ANAS 9, Nigar
Rafibeyli str., AZ1001, Baku , Azerbaijan Republican Seismic Survey
(99412) 4923437
www.seismology.az

Data at the ISC for 15 years between 2009 and 2023.
